Supported Microcontrollers

Microcontrollers supported by the RIoT Secure Platform

Identifier	Name	Architechture	Manufacturer	RAM	Flash	REST ID
A100	ATmega48/48A	avr	Microchip	512	4096	1
A101	ATmega48P/48PA	avr	Microchip	512	4096	2
A102	ATmega48PB	avr	Microchip	512	4096	3
A200	ATmega8/8A	avr	Microchip	1024	8192	4
A210	ATmega8U2	avr	Microchip	512	8192	5
A220	ATmega88/88A	avr	Microchip	1024	8192	6
A221	ATmega88P/88PA	avr	Microchip	1024	8192	7
A222	ATmega88PB	avr	Microchip	1024	8192	8
A230	ATmega808	avr	Microchip	1024	8192	9

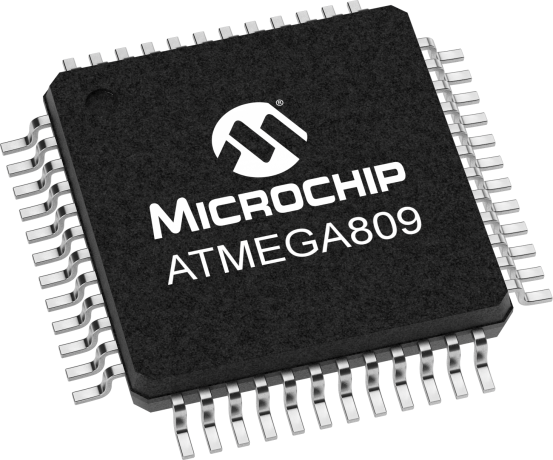

A240	ATmega809	avr	Microchip	1024	8192	10
A250	ATmega8515	avr	Microchip	512	8192	11
A260	ATmega8535	avr	Microchip	512	8192	12
A300	ATmega16/16A	avr	Microchip	1024	16384	13
A310	ATmega16U2	avr	Microchip	512	16384	14
A311	ATmega16U4	avr	Microchip	1280	16384	15
A320	ATmega168/168A	avr	Microchip	1024	16384	16
A321	ATmega168P/168PA	avr	Microchip	1024	16384	17
A322	ATmega168PB	avr	Microchip	1024	16384	18
A330	ATmega1608	avr	Microchip	2048	16384	19
A340	ATmega1609	avr	Microchip	2048	16384	20

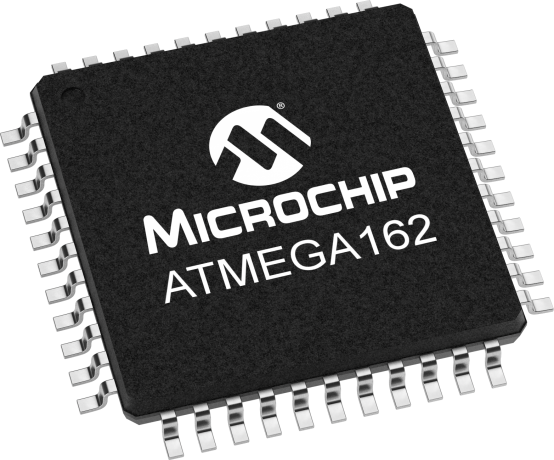

A350	ATmega162	avr	Microchip	1024	16384	21
A360	ATmega164A	avr	Microchip	1024	16384	22
A370	ATmega164P/164PA	avr	Microchip	1024	16384	23

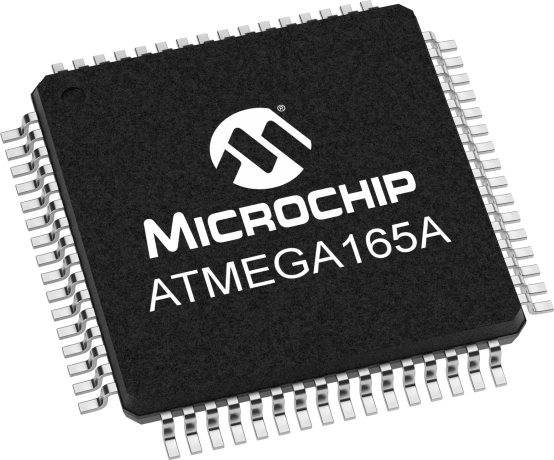

A380	ATmega165A	avr	Microchip	1024	16384	24
A381	ATmega165P/165PA	avr	Microchip	1024	16384	25
A390	ATmega169A	avr	Microchip	1024	16384	26
A391	ATmega169P/169PA	avr	Microchip	1024	16384	27
A3A0	ATmega16M1	avr	Microchip	1024	16384	28
A400	ATmega32/32A	avr	Microchip	2048	32768	29
A410	ATmega32U2	avr	Microchip	1024	32768	30
A411	ATmega32U4	avr	Microchip	2560	32768	31

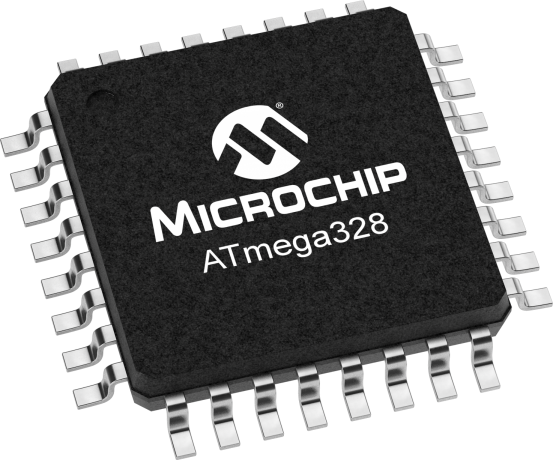

A420	ATmega328	avr	Microchip	2048	32768	32
A421	ATmega328P	avr	Microchip	2048	32768	33

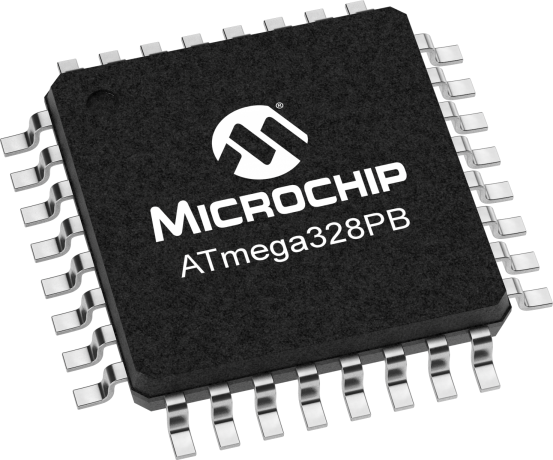

A422	ATmega328PB	avr	Microchip	2048	32768	34

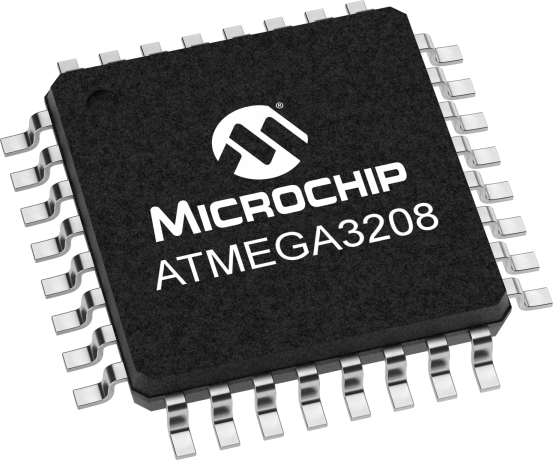

A430	ATmega3208	avr	Microchip	4096	32768	35
A440	ATmega3209	avr	Microchip	4096	32768	36

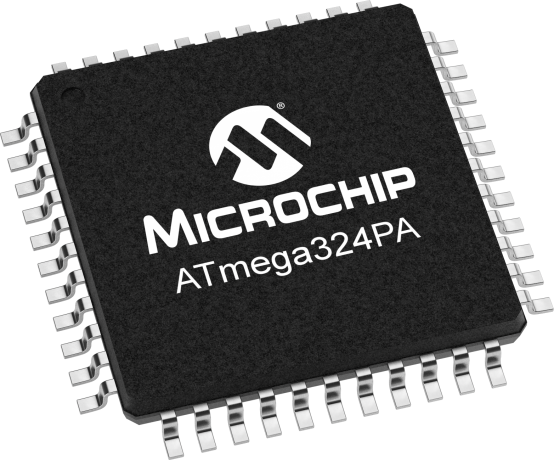

A450	ATmega324A	avr	Microchip	2048	32768	37

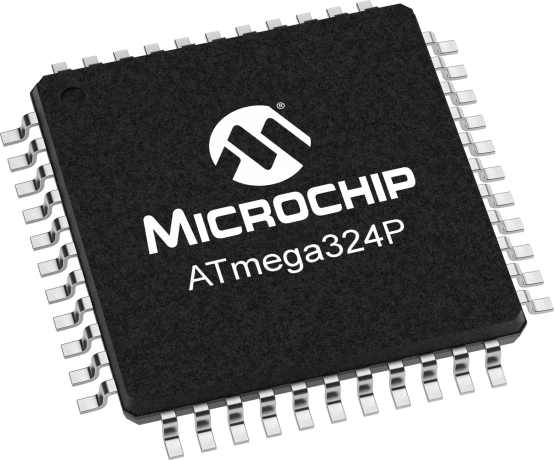

A451	ATmega324P	avr	Microchip	2048	32768	38
A452	ATmega324PA	avr	Microchip	2048	32768	39

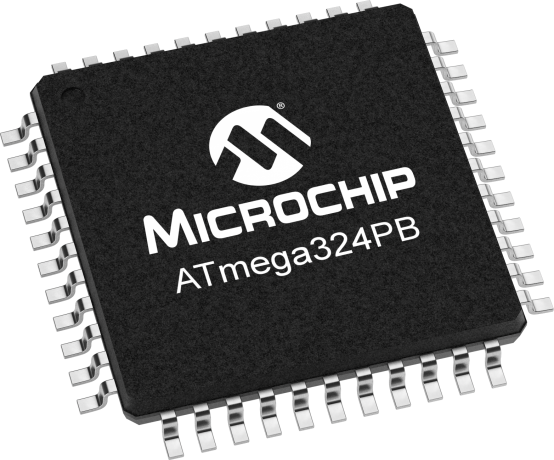

A453	ATmega324PB	avr	Microchip	2048	32768	40

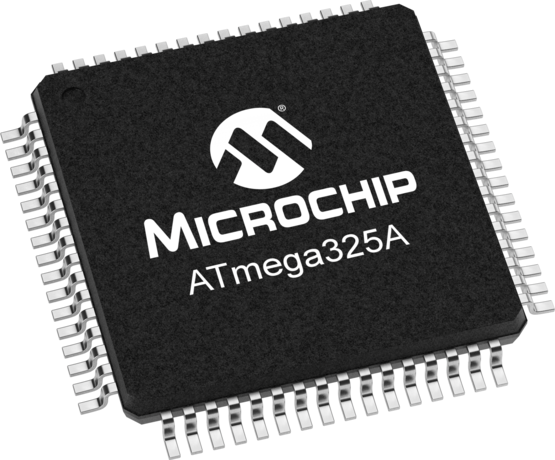

A460	ATmega325/325A	avr	Microchip	2048	32768	41
A461	ATmega325P/325PA	avr	Microchip	2048	32768	42
A470	ATmega3250/3250A	avr	Microchip	2048	32768	43

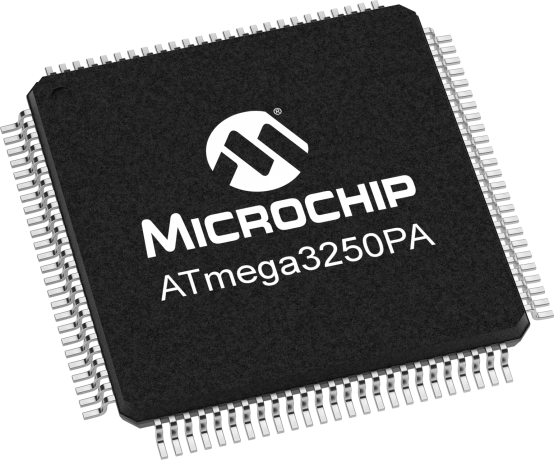

A471	ATmega3250P/3250PA	avr	Microchip	2048	32768	44
A480	ATmega329/329A	avr	Microchip	2048	32768	45
A481	ATmega329P/329PA	avr	Microchip	2048	32768	46
A490	ATmega3290/3290A	avr	Microchip	2048	32768	47

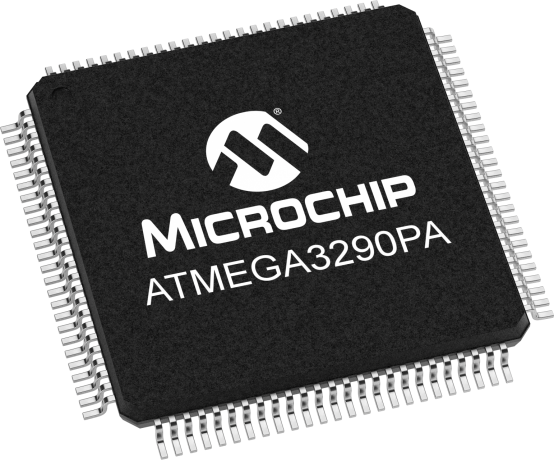

A491	ATmega3290P/3290PA	avr	Microchip	2048	32768	48
A4A0	ATmega32M1	avr	Microchip	2048	32768	49
A4A1	ATmega32C1	avr	Microchip	2048	32768	50

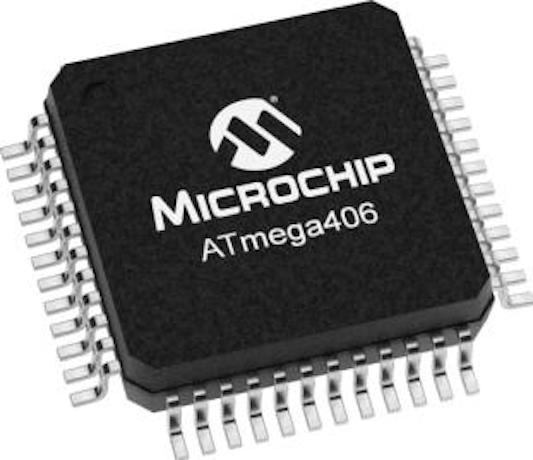

A500	ATmega406	avr	Microchip	2048	40960	51

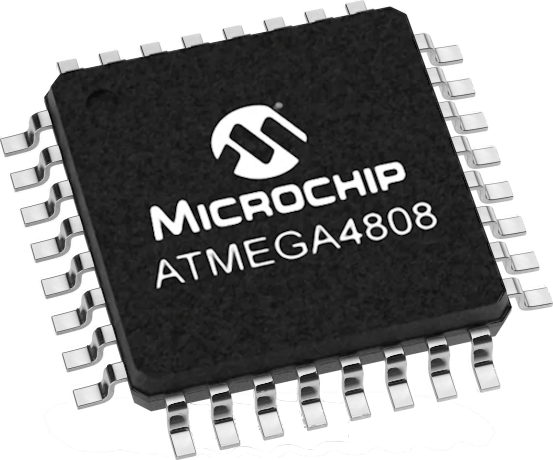

A600	ATmega4808	avr	Microchip	6144	49152	52

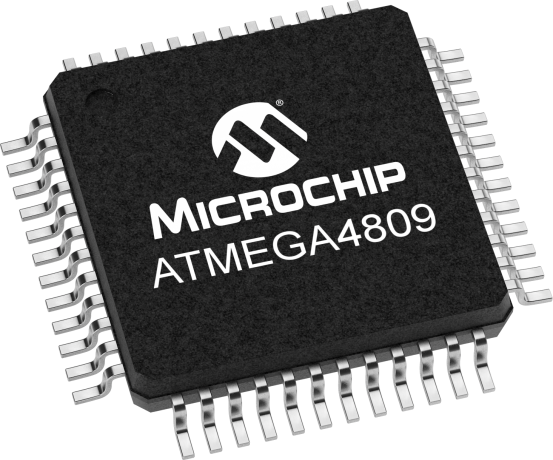

A610	ATmega4809	avr	Microchip	6144	49152	53
A700	ATmega64/64A	avr	Microchip	4096	65536	54

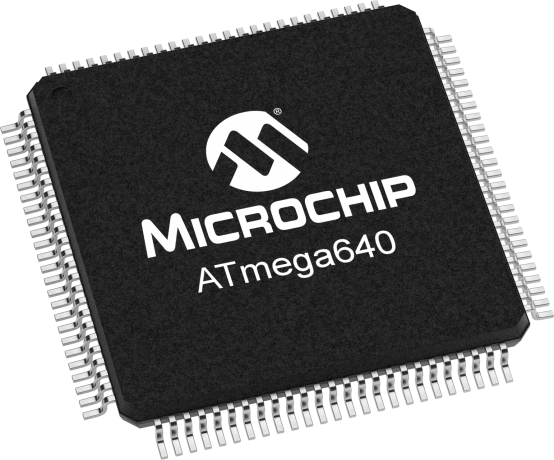

A710	ATmega640	avr	Microchip	8192	65536	55
A720	ATmega644/644A	avr	Microchip	4096	65536	56
A721	ATmega644P/644PA	avr	Microchip	4096	65536	57
A730	ATmega645/645A	avr	Microchip	4096	65536	58
A731	ATmega645P	avr	Microchip	4096	65536	59
A740	ATmega6450/6450A	avr	Microchip	4096	65536	60

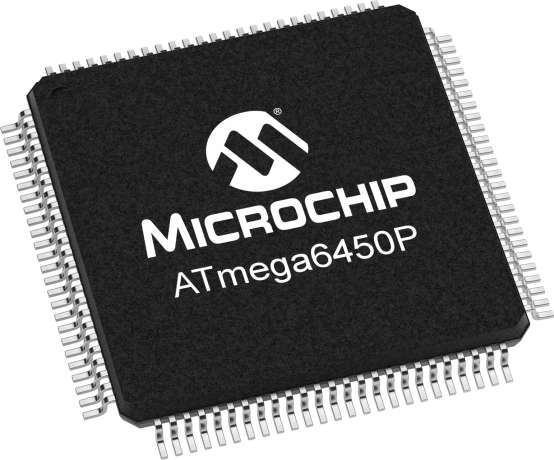

A741	ATmega6450P	avr	Microchip	4096	65536	61
A750	ATmega649/649A	avr	Microchip	4096	65536	62
A751	ATmega649P	avr	Microchip	4096	65536	63
A760	ATmega6490/6490A	avr	Microchip	4096	65536	64

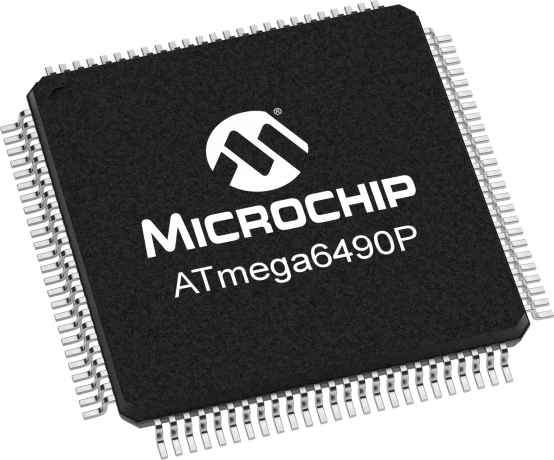

A761	ATmega6490P	avr	Microchip	4096	65536	65

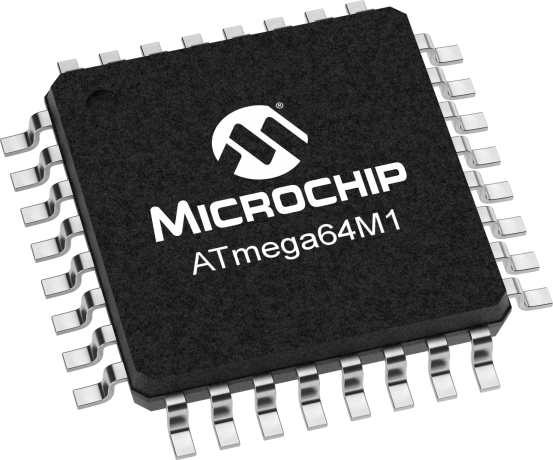

A770	ATmega64M1	avr	Microchip	4096	65536	66
A771	ATmega64C1	avr	Microchip	4096	65536	67

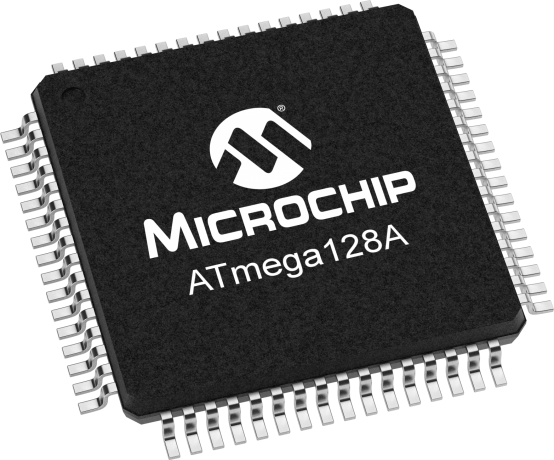

A800	ATmega128/128A	avr	Microchip	4096	131072	68
A810	ATmega1280	avr	Microchip	8192	131072	69

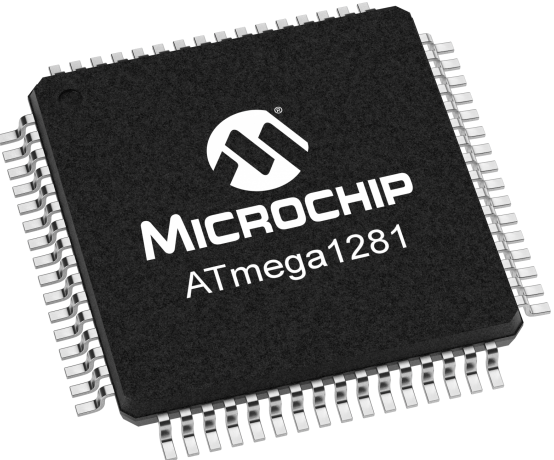

A811	ATmega1281	avr	Microchip	8192	131072	70
A820	ATmega1284	avr	Microchip	16384	131072	71
A821	ATmega1284P	avr	Microchip	16384	131072	72
A900	ATmega2560	avr	Microchip	8192	262144	73
A901	ATmega2561	avr	Microchip	8192	262144	74

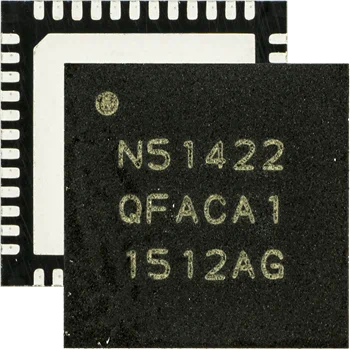

N510	nRF51422_128k	ARM Cortex-M0	Nordic Semiconductor	16384	131072	75
N511	nRF51422_256k/16k	ARM Cortex-M0	Nordic Semiconductor	16384	131072	76
N512	nRF51422_256k/32k	ARM Cortex-M0	Nordic Semiconductor	32768	262144	77

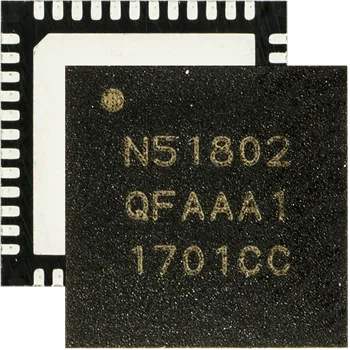

N513	nRF51802	ARM Cortex-M0	Nordic Semiconductor	16384	262144	78

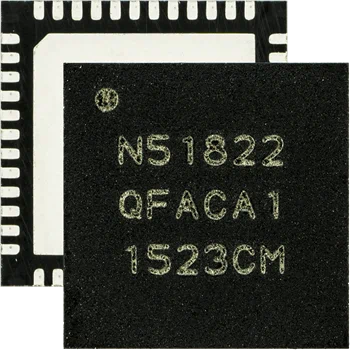

N514	nRF51822_128k	ARM Cortex-M0	Nordic Semiconductor	16384	131072	79
N515	nRF51822_256k/16k	ARM Cortex-M0	Nordic Semiconductor	16384	262144	80
N516	nRF51822_256k/32k	ARM Cortex-M0	Nordic Semiconductor	32768	262144	81

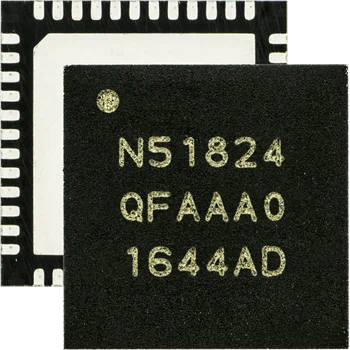

N517	nRF51824	ARM Cortex-M0	Nordic Semiconductor	16384	262144	82

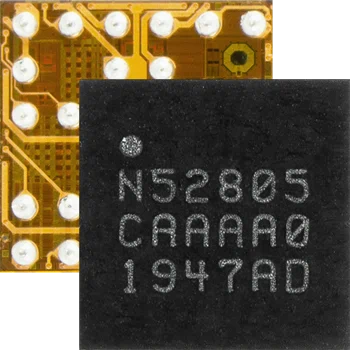

N520	nRF52805	ARM Cortex-M4	Nordic Semiconductor	24576	196608	83

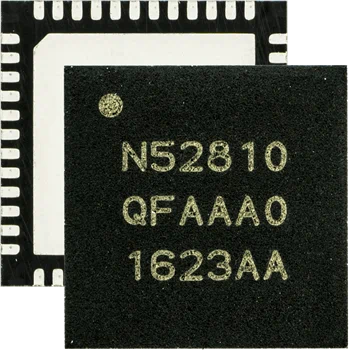

N521	nRF52810	ARM Cortex-M4	Nordic Semiconductor	24576	196608	84

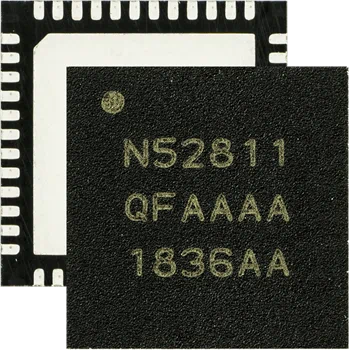

N522	nRF52811	ARM Cortex-M4	Nordic Semiconductor	24576	196608	85

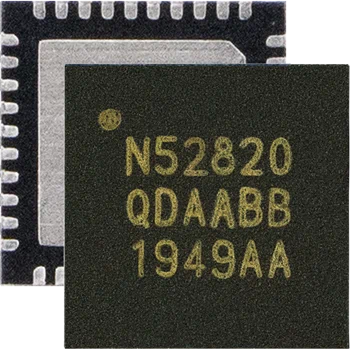

N523	nRF52820	ARM Cortex-M4	Nordic Semiconductor	32768	262144	86

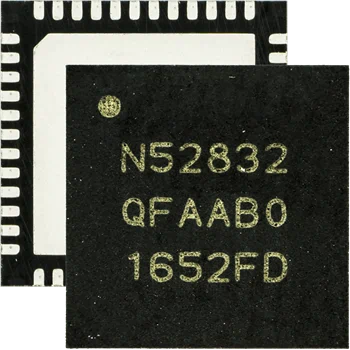

N524	nRF52832_256k	ARM Cortex-M4	Nordic Semiconductor	32768	262144	87
N525	nRF52832_512k	ARM Cortex-M4	Nordic Semiconductor	65536	524288	88
N526	nRF52833	ARM Cortex-M4	Nordic Semiconductor	131072	524288	89

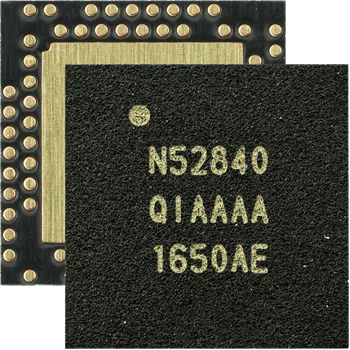

N527	nRF52840	ARM Cortex-M4	Nordic Semiconductor	262144	1048576	90

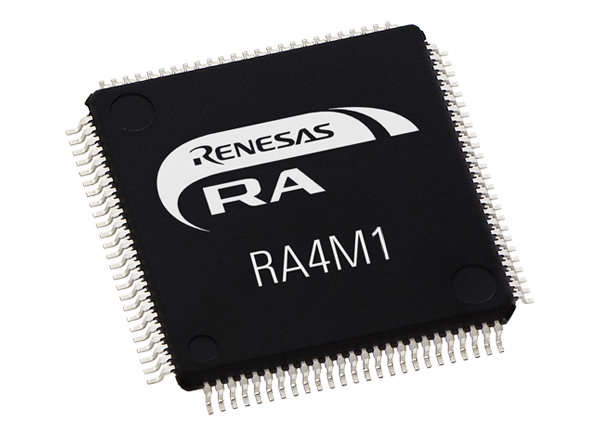

R100	R7FA4M1AB	ARM Cortex-M0	Renesas	32768	262144	91
